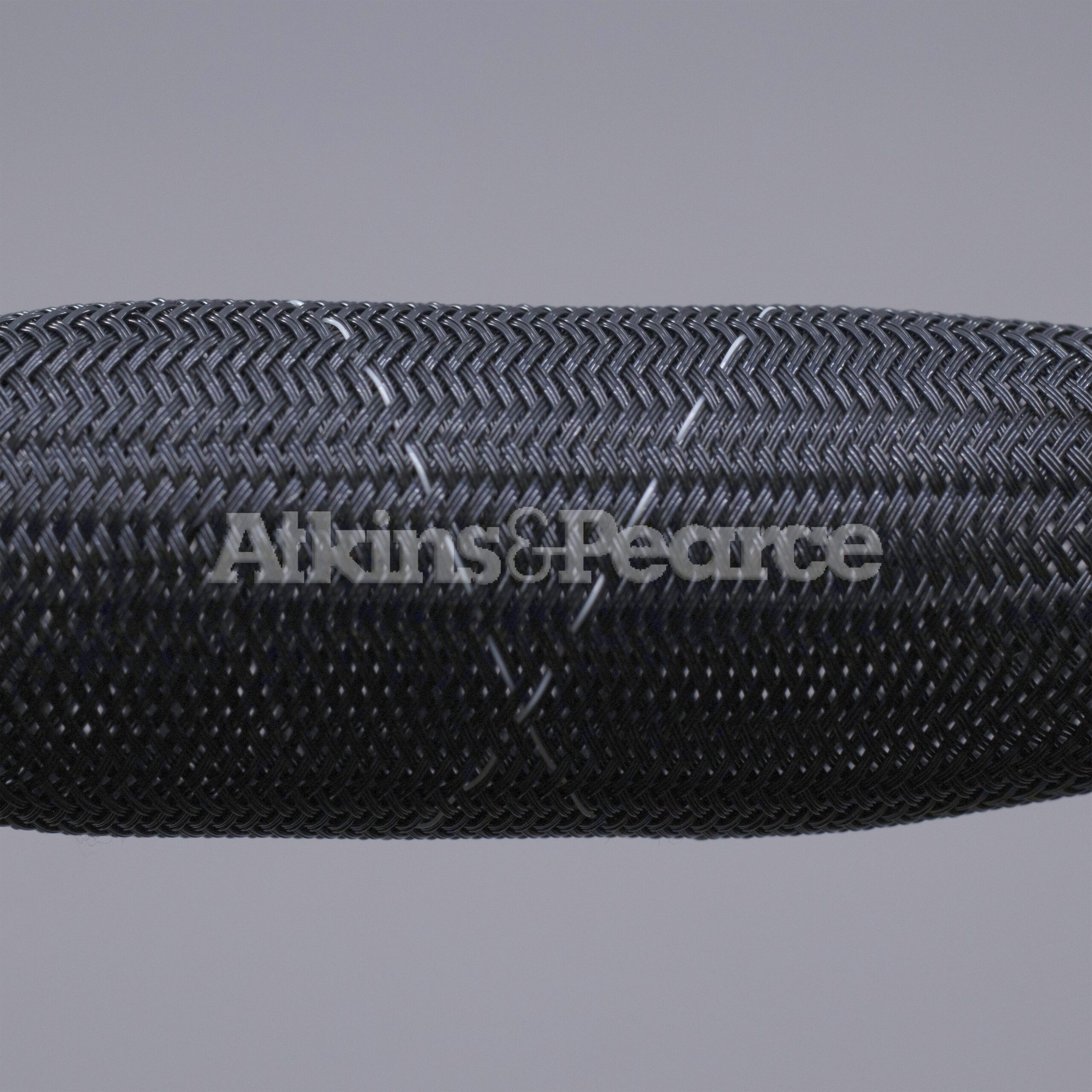

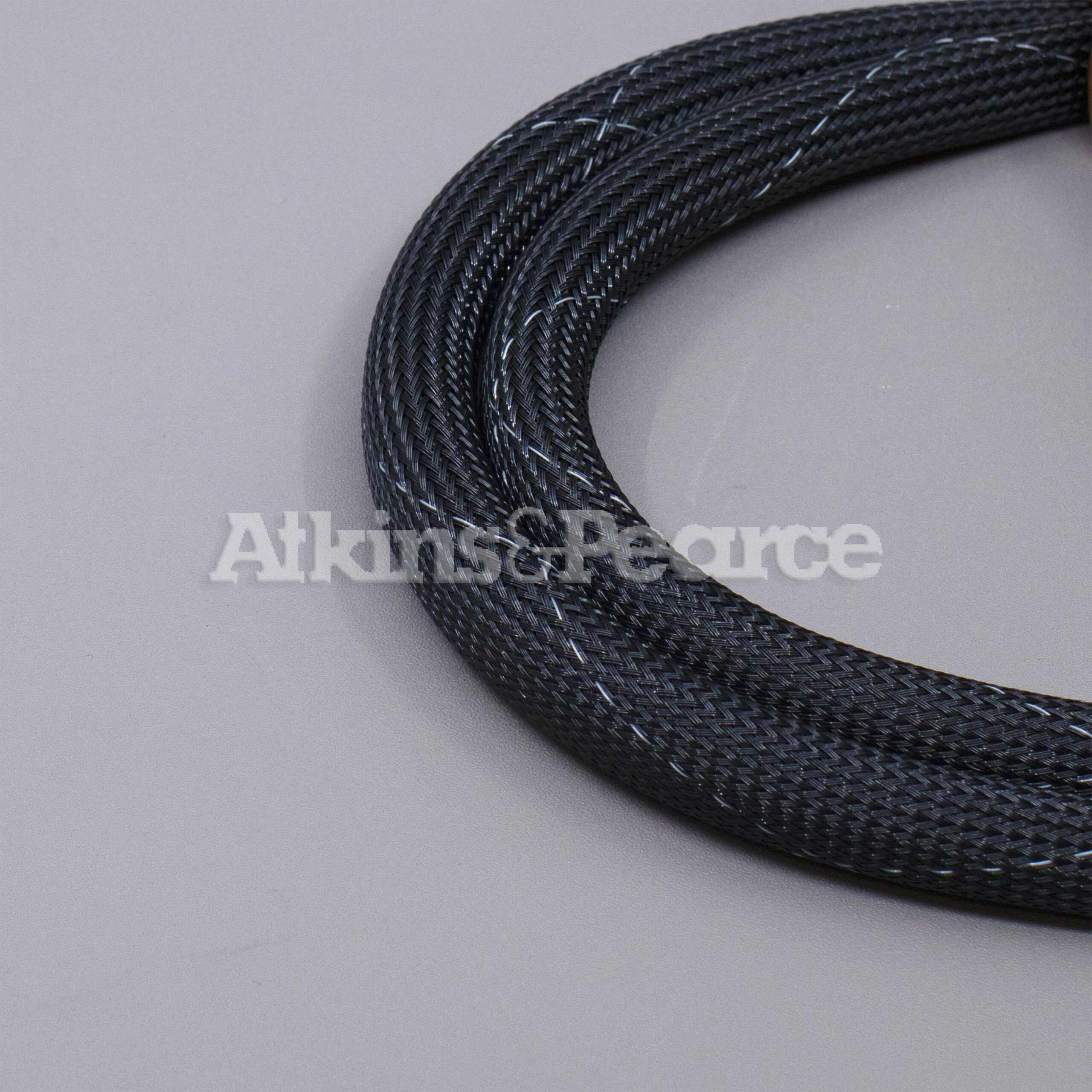

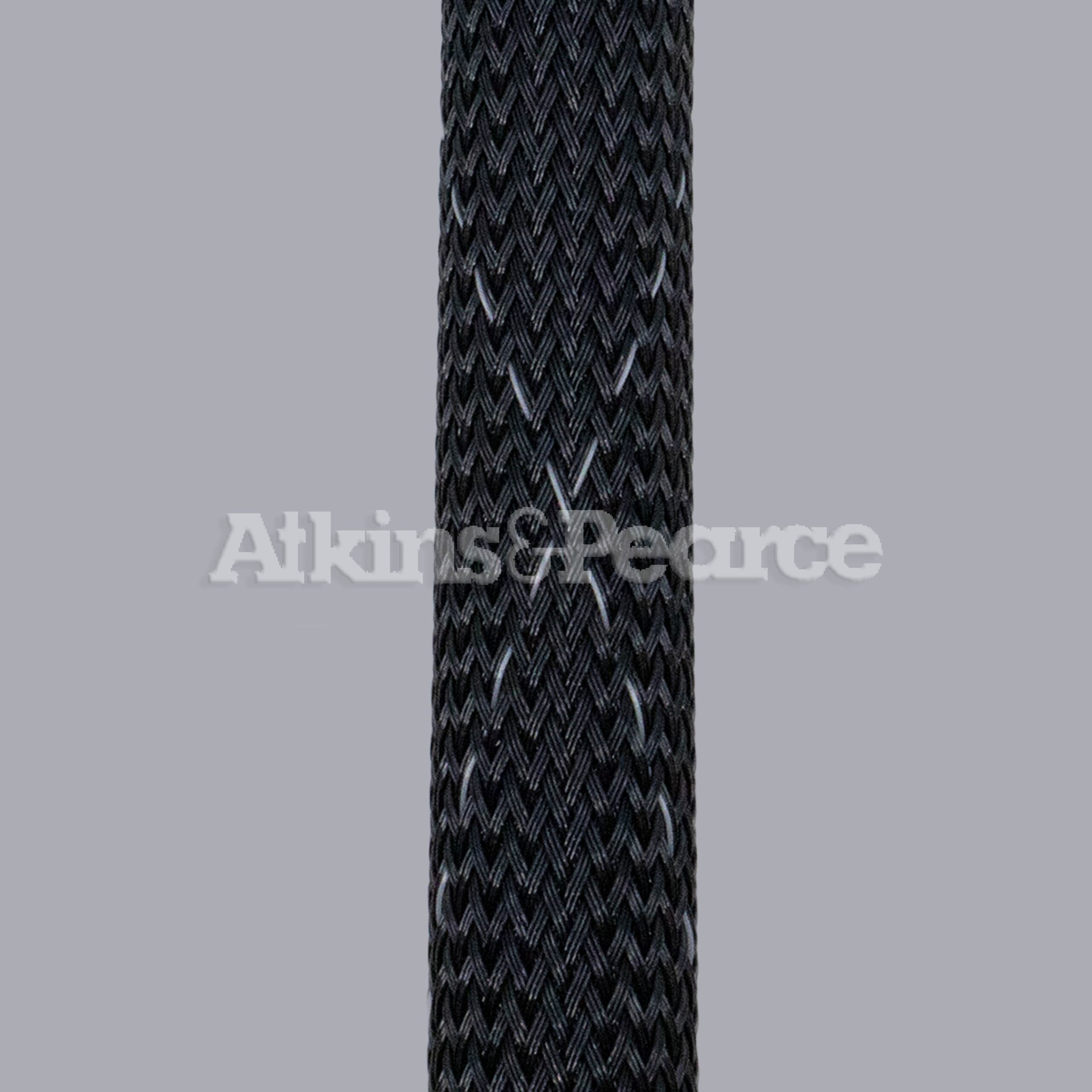

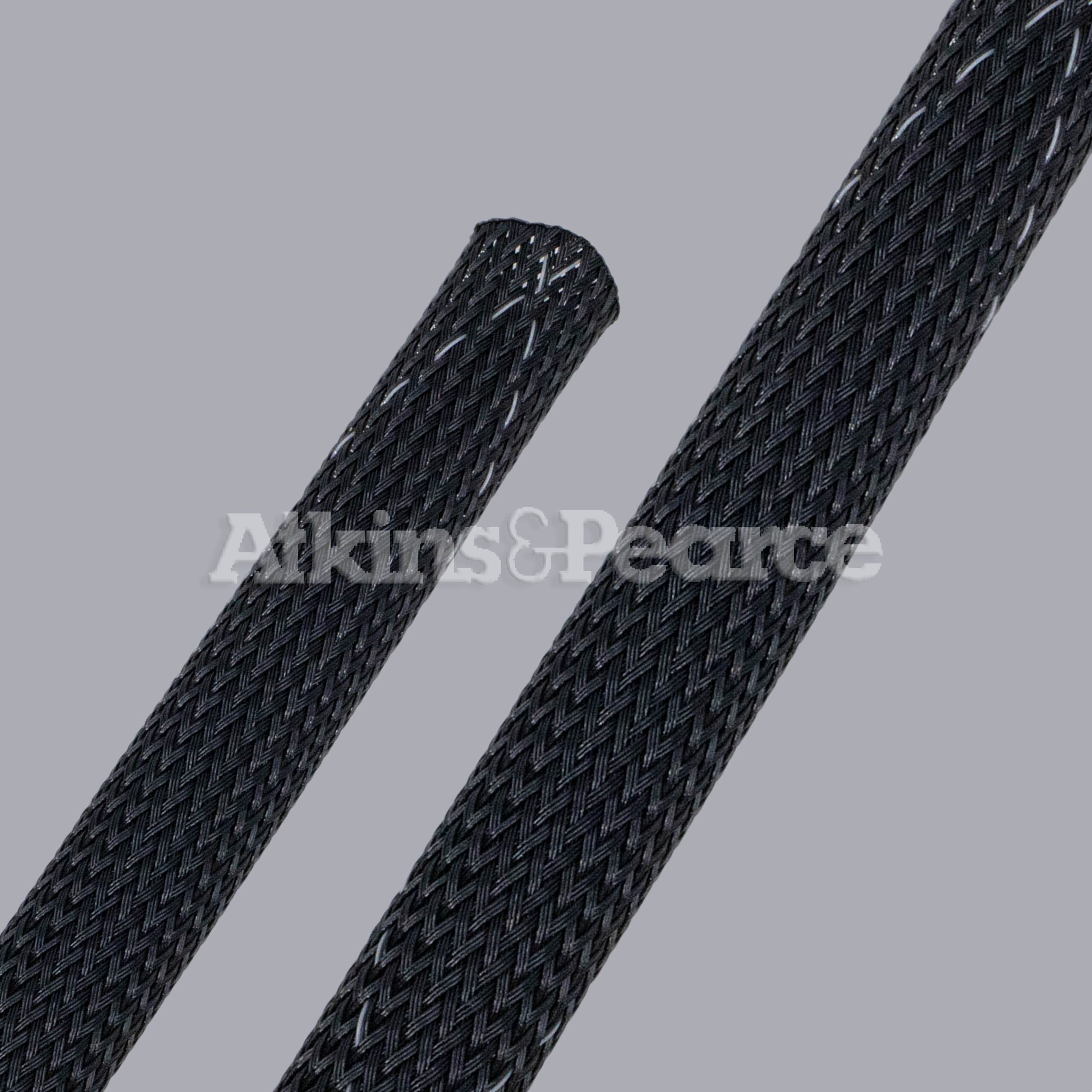

Monoflex® PET FR TW
Monoflex® PET FR TW is an unique combination of our PET FR and PET TW sleevings. This flame-retardant and tight-weave sleeving is universally known for having excellent abrasion resistance, high coverage, increased density, and is durable against heat operating up to 125°C. Monoflex® PET FR TW is ideal for use where flame-retardant is required and applications where snag resistance, coverage, and protection are needed. This sleeve is tightly woven for additional coverage and provides a cost-effective solution for abrasion protection. It is relied on in a wide variety of applications such as: automotive, marine, heavy equipment, industrial, and electronic wire harness applications.
Monoflex® PET FR TW is currently unavailable for purchase online. Please contact us to learn more about the color variety and multiple sizes we offer.
Features of Monoflex® PET FR TW
- Resistance to abrasion
- Maximum Operating Temperature: 125°C / 257°F
- Tight-weave construction useful for higher coverage
- REACH and RoHS Compliant
- Alternate .009" construction available (FRT9 series)
- Direct match to Alta Technologies Flex-Guard FPE/TW (957 series).
Download Monoflex® PET FR TW Datasheet
Testing Data for Monoflex® PET FR TW
| PROPERTY | TEST | VALUE |
|---|---|---|
| Abrasion | ASTM D-4060 | 8,500 cycles |
| Low Temperature Flexibility | Below Freezing | No Cracking or Deformation |
Temperature Scale for Monoflex® PET FR TW
| Description | Temperature |
|---|---|
| Maximum Operating Temperature | 125°C / 257°F |
| Melting Point | 230°C - 260°C / 446°F - 500°F |
Monofilament Properties of Monoflex® PET FR TW
| PROPERTY | VALUE |
|---|---|
| Single-Strand Diameter | 0.010" |
| Density | 1.38 g/cc |
| Single-Strand Tensile Strength | 8.5 lbs. |
| Moisture Absorption | 0.20% |
DISCLAIMER
The suggested application is provided by Atkins & Pearce merely as an additional tool to assist the customer in making an appropriate expandable sleeving selection. This is only provided to serve as suggestions of expandable sleeving that may be appropriate based on certain criteria and should not be relied upon as determinative or as a substitute for customer testing.
Many variables exist in a sleeve’s flexibilities, resistances, and treatment. Final sleeving product selection should always be confirmed through the customer’s own testing process to determine if a particular product is the correct choice for a particular system. Atkins & Pearce is not responsible for selections made by the customer using any of the reference material provided. For optimal performance in specific systems, we strongly recommend that customers conduct exhaustive electrical tests in their own lab and consider retaining samples for their future internal reference. The importance of expandable sleeving product testing and data validation cannot be overstated.
As the customer, you and your company are responsible for appropriately testing all Atkins & Pearce expandable sleeving used in your application and for making the final selection based upon meeting appropriate safety and electrical standards. Atkins & Pearce makes no representation or warranty, expressed or implied, at law or in equity, in respect of the information provided, including, without limitation, with respect to merchantability or fitness for any particular purpose, which representations or warranties are hereby expressly disclaimed.
