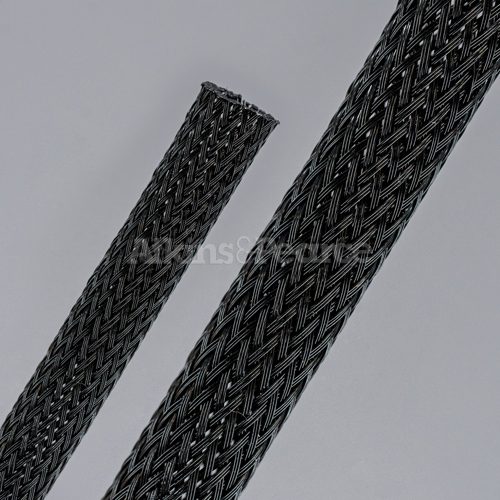

MONOFLEX™ PET is universally known for having excellent abrasion and cut-through resistance. This sleeving provides a cost-effective solution for abrasion protection and is rated to 125°C. It is relied on in a wide variety of applications such as: automotive, marine, heavy equipment, industrial, and electronic wire harness applications.
MONOFLEX™ PET is available for purchase online in black; if you are interested in exploring our wide variety of other colors for customization, please contact us for assistance. All 25 FT spools are offered splice-free and all ID sizes 1/2″ and smaller are offered rounded.
Features of MONOFLEX™ PET
- Offers a high expansion ratio and excellent mechanical abrasion and cut resistance
- Operating Temperature: -70°C to 125°C
- Resists gasoline and all other common automotive fluids
- REACH and RoHS Compliant
- Available in a large variety of colors, patterns, and custom constructions
- UL listed under file #E118600
Testing Data for MONOFLEX™ PET
|MONOFILAMENT DIAMETER||ASTM D-204||0.010"|
|TENSILE STRENGTH||ASTM D-2256||7.5 LBS.|
|SPECIFIC GRAVITY||ASTM D-792||1.38|
|MOISTURE ABSORPTION||ASTM D-570||0.1% - 0.2%|
|FLAMMABILITY||FMVSS 302||SELF EXTINGUISHING, TYPE B|
|FLAMMABILITY||SAE J 369-89||PASS|
|FLUID RESISTANCE||SAE J2 192||100% TENSILE RETENTION|
|FLUID RESISTANCE||MIL-I-23053||100% TENSILE RETENTION|
|LOW TEMP FLEXIBILITY||MIL-DTL-23053E||-70°C|
|HEAT AGE @ 168 HRS||ES-AC35-1A303-AA||PASS|
|HEAT AGE @ 3,000 HRS||ES-AC35-1A303-AA||PASS|
|ABRASION||SAE ARP 1536A||MIN 45,000 Cycles|
|LIMITING OXYGEN INDEX||ASTM D-2863||21|
|TML||ASTM E-595 AT 10-5 TORR||0.19%|
|CVCM||ASTM E-595 AT 10-5 TORR||0.00%|
|WVR||ASTM E-595 AT 10-5 TORR||0.16%|
Temperature Scale for MONOFLEX™ PET
|OPERATING TEMPERATURE||-70°C TO 125°C|
|MELT POINT||482°F (250°C)|
|MAXIMUM CONTINUOUS||257°F (125°C)|
|MINIMUM CONTINUOUS||-94°F (-70°C)|
Chemical Resistance of MONOFLEX™ PET
The suggested application is provided by Atkins & Pearce merely as an additional tool to assist the customer in making an appropriate expandable sleeving selection. This is only provided to serve as suggestions of expandable sleeving that may be appropriate based on certain criteria and should not be relied upon as determinative or as a substitute for customer testing.
Many variables exist in a sleeve’s flexibilities, resistances, and treatment. Final sleeving product selection should always be confirmed through the customer’s own testing process to determine if a particular product is the correct choice for a particular system. Atkins & Pearce is not responsible for selections made by the customer using any of the reference material provided. For optimal performance in specific systems, we strongly recommend that customers conduct exhaustive electrical tests in their own lab and consider retaining samples for their future internal reference. The importance of expandable sleeving product testing and data validation cannot be overstated.
As the customer, you and your company are responsible for appropriately testing all Atkins & Pearce expandable sleeving used in your application and for making the final selection based upon meeting appropriate safety and electrical standards. Atkins & Pearce makes no representation or warranty, expressed or implied, at law or in equity, in respect of the information provided, including, without limitation, with respect to merchantability or fitness for any particular purpose, which representations or warranties are hereby expressly disclaimed.
