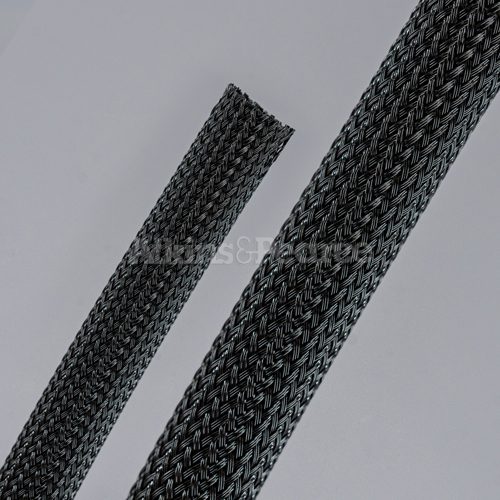

MONOFLEX® PET NF
MONOFLEX® PET NF is similar to our PET sleeving but with exceptional fray-resistant uncoated properties, designed to be cut with scissors and result in a clean cut without dust, flaking, or powder residual. This sleeving is universally known for having excellent abrasion resistance and is durable against heat operating up to 125°C. The particular design and expandability allows for simple and efficient installation over connectors.
MONOFLEX® PET NF is currently unavailable for purchase online; please reach out through the button below for purchasing assistance from our Sales & Marketing Team or to learn more about the multiple sizes we offer, as well as, a flame-retardant construction that is also available.
Features of MONOFLEX® PET NF
- Non-fray design that is field ready for scissor cutting.
- Maximum Operating Temperature: 125°C / 257°F
- Offers a high expansion ratio and excellent mechanical abrasion resistance.
- REACH and RoHS Compliant
- Common Applications: Automotive, Marine, Heavy Equipment, Industrial, and Electronic Wire Harness
Testing Data for MONOFLEX® PET NF
| PROPERTY | TEST | VALUE |
|---|---|---|
| Abrasion | ASTM D-4060 | 14,500 cycles |
| Heat Age @ 168 Hours | ASTM D-3045 | No Cracking, Melting, or Deformation |
| Low Temperature Flexibility | Below Freezing | No Cracking or Deformation |
Temperature Scale for MONOFLEX® PET NF
| PROPERTY | VALUE |
|---|---|
| Maximum Operating Temperature | 125°C / 257°F |
| Melting Point | 230°C - 260°C / 446°F - 500°F |
Monofilament Properties of MONOFLEX® PET NF
| PROPERTY | VALUE |
|---|---|
| Single-Strand Diameter | 0.009" |
| Density | 5.4 lbs. |
| Single-Strand Tensile Strength | 1.38 g/cc |
| Moisture Absorption | 0.20% |
DISCLAIMER
The suggested application is provided by Atkins & Pearce merely as an additional tool to assist the customer in making an appropriate expandable sleeving selection. This is only provided to serve as suggestions of expandable sleeving that may be appropriate based on certain criteria and should not be relied upon as determinative or as a substitute for customer testing.
Many variables exist in a sleeve’s flexibilities, resistances, and treatment. Final sleeving product selection should always be confirmed through the customer’s own testing process to determine if a particular product is the correct choice for a particular system. Atkins & Pearce is not responsible for selections made by the customer using any of the reference material provided. For optimal performance in specific systems, we strongly recommend that customers conduct exhaustive electrical tests in their own lab and consider retaining samples for their future internal reference. The importance of expandable sleeving product testing and data validation cannot be overstated.
As the customer, you and your company are responsible for appropriately testing all Atkins & Pearce expandable sleeving used in your application and for making the final selection based upon meeting appropriate safety and electrical standards. Atkins & Pearce makes no representation or warranty, expressed or implied, at law or in equity, in respect of the information provided, including, without limitation, with respect to merchantability or fitness for any particular purpose, which representations or warranties are hereby expressly disclaimed.
